SEC-03 · SHOP & ARCHITECTURAL PLANS

Shop Plans, 90 & 84 Spruce St 30×60 Studio & Wood-Mizer LT15 Electrical

Complete engineering blueprint sets for the Multi-Zone Technical Workshop (BWS R05 — 12 ARCH D sheets), Kaaterskill Sawmill 90 & 84 Spruce St 30×60 ft Studio & Kiln (R09, Village of Tannersville R1 zoning), and the Lincoln 10 HP Single-Phase Wood-Mizer LT15 sawmill circuit.

12 Sheets

BWS R05 ARCH D Set (G001 to V002)

144×48 in

Stacked Timber Worktable + Post C1

30×60 ft

90 Spruce St Studio + 15×30 Mezzanine (R09)

50A FLC

LT15 10 HP 230V 1-Ph (NEC 430.248 · 6 AWG Cu)

1. Multi-Zone Technical Workshop Package (BWS R05 — 12 ARCH D Sheets)

19 ft / 25 ft Verified Widths · Offset Column C1 (P589–P591) · Sheet E201 12V Fused Bulb Test Bench

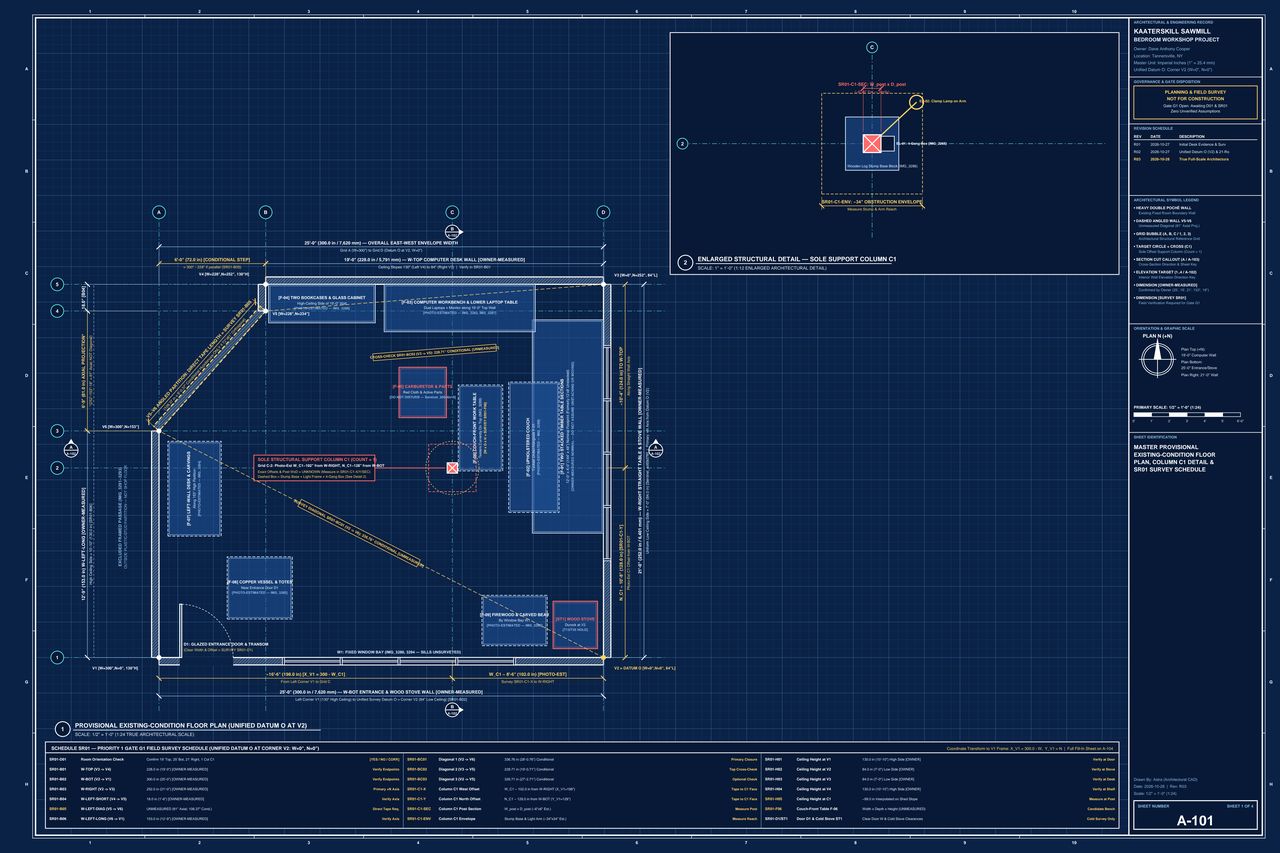

Sheet 1 Master Floor Plan Cyanotype showing multi-zone technical workshop layout, 144x48 inch timber bench, and offset column C1 — **Sheet A101 Master Floor Plan (Cyanotype):** Dimensioned multi-zone layout with Zone 1 Clean Electronics Lab, Zone 2 144×48 in Stacked Timber Fabrication Table, and verified single offset column C1.

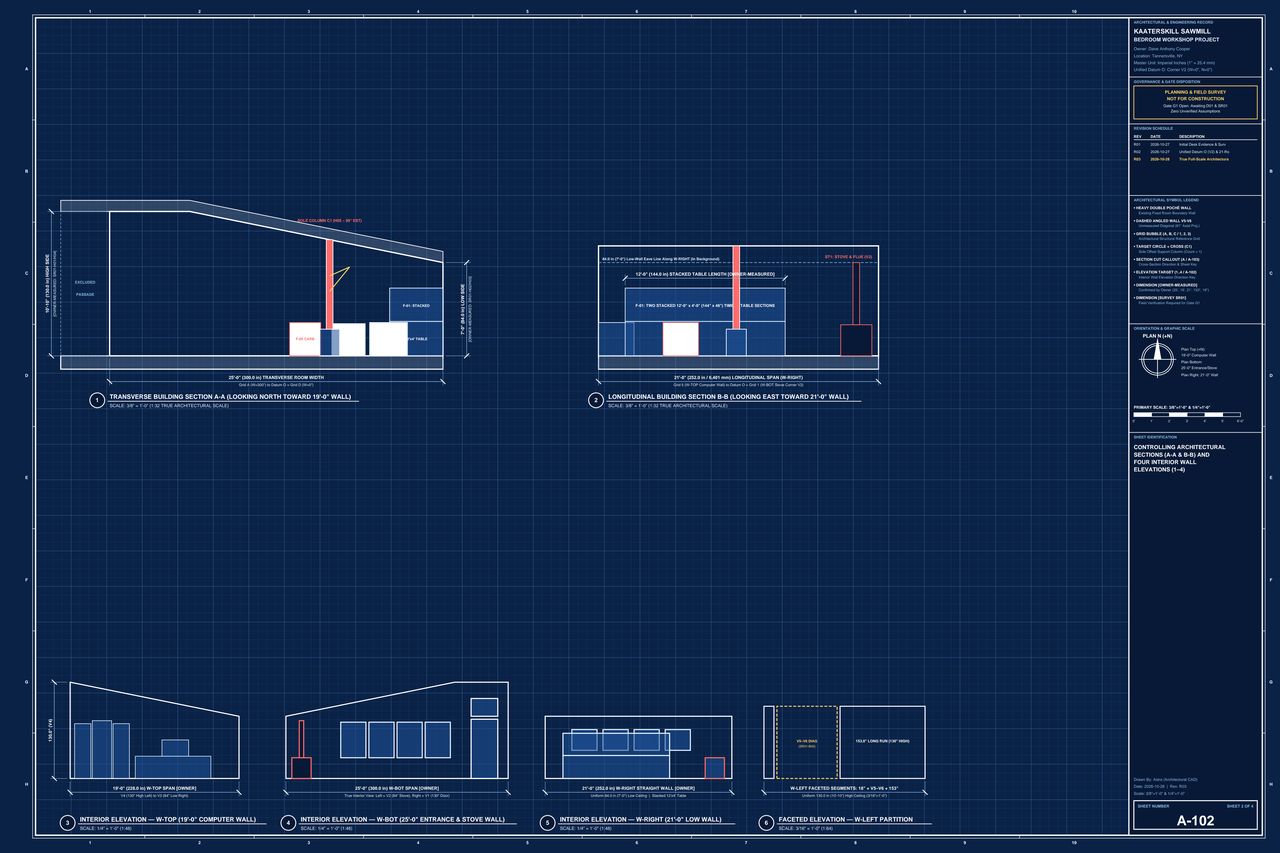

Sheet 2 Sections and Interior Elevations Cyanotype — **Sheet A201/S001 Sections & Elevations (Cyanotype):** Structural framing, tool wall elevations, instrument rack clearances, and fume/dust extraction routing.

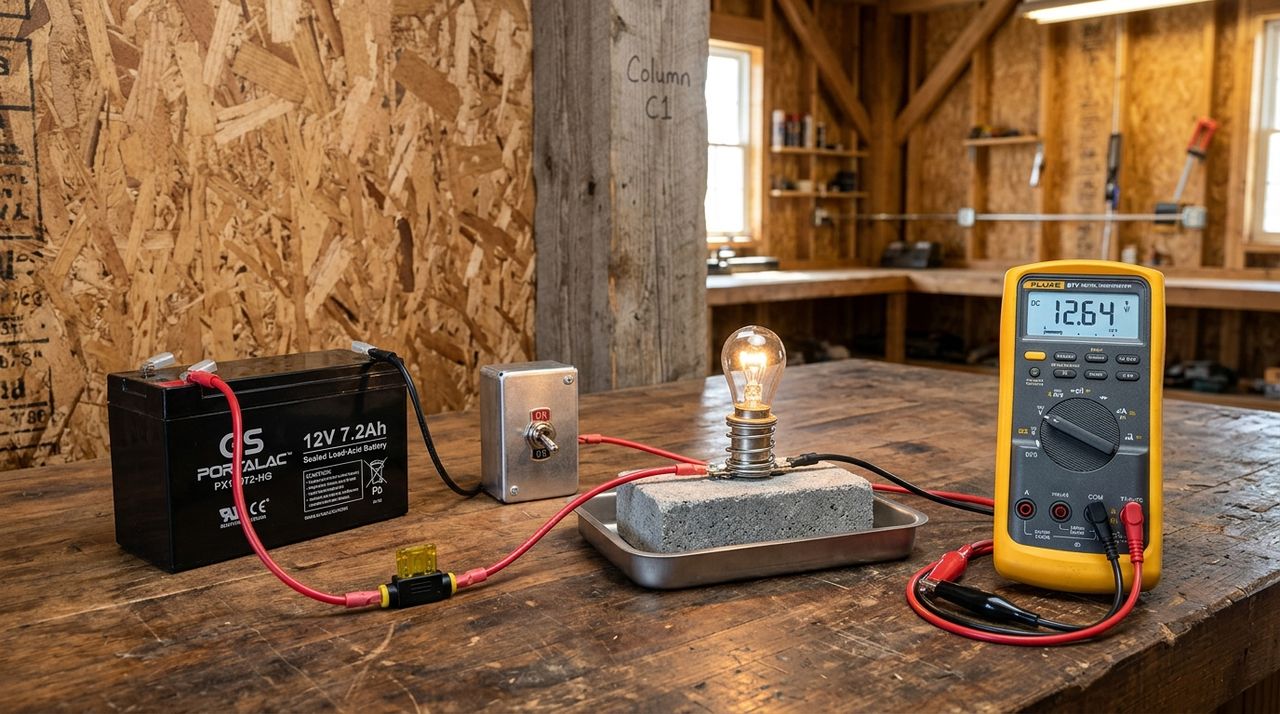

Sheet E201 Safe 12V 1156 Automotive Bulb Current-Limited Test Bench Render — **Sheet E201 Safe 12V 1156 Fused Bulb Bench:** Series incandescent current-limiter + inline fuse block + Fluke metering points for safe 12V motor/solenoid testing.

Sheet	Drawing Title & Engineering Scope	Revision
G001	Cover Sheet, Drawing Index, Code Matrix & Symbol Legend	R05 Issued
A101	Master Dimensioned Floor Plan (19 ft & 25 ft Widths, Single Offset Column C1 Verified in P589–P591)	R05 Issued
A102	Zone 1 (Clean Electronics Lab) & Zone 2 (144×48 in Stacked Timber Worktable) Enlarged Plan	R05 Issued
A103	Egress, Thermal & High-Voltage Safety Clearance Envelope Plan	R05 Issued
A201–A202	North, East, South & West Interior Wall Elevations (Tool Wall, Instrument Rack & Loom Bays)	R05 Issued
S001	Structural Column C1 Load Path & 144×48 in Stacked Dimensional-Timber Bench Framing Details	R05 Issued
E101	Dedicated Branch Circuits, Silicone ESD Grounding Bus & Bench Receptacle Schedule	R05 Issued
E201	Safe 12V 1156 Fused Automotive Bulb Current-Limiting Test Bench Schematic	R05 Issued
M101 / P001	HEPA Dust / Solder Fume Extraction, Make-Up Air, Ultrasonic Sink & Spill Containment	R05 Issued
V001–V002	3D Isometric Cutaways & Photorealistic Bench Lighting Views	R05 Issued

2. Kaaterskill Sawmill — 90 & 84 Spruce St 30×60 Studio & Kiln (R09) + Wood-Mizer LT15 Electrical

Village of Tannersville (SWIS 193603) R1 Bulk Standards · Lincoln 10 HP Single-Phase NEC 430.248

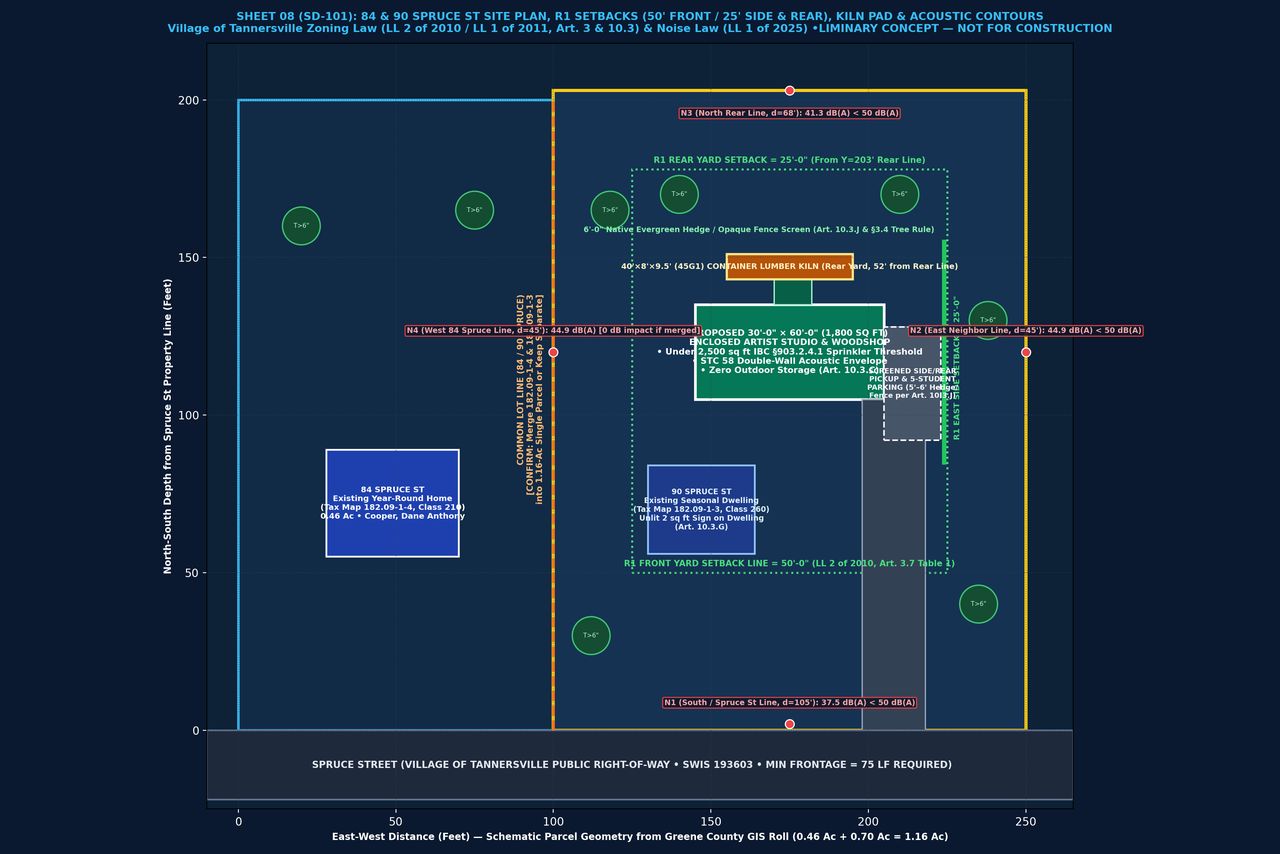

Sheet 08 Site Plan for 90 and 84 Spruce St in Village of Tannersville showing 30x60 Studio and Kiln Pad — **Doc 08 Site Plan (R09) — 90 & 84 Spruce St:** Greene County Parcels 182.09-1-3 (0.70 ac roll) & 182.09-1-4 (0.46 ac roll), Village of Tannersville R1 setbacks, 30×60 ft studio footprint, and outdoor kiln pad.

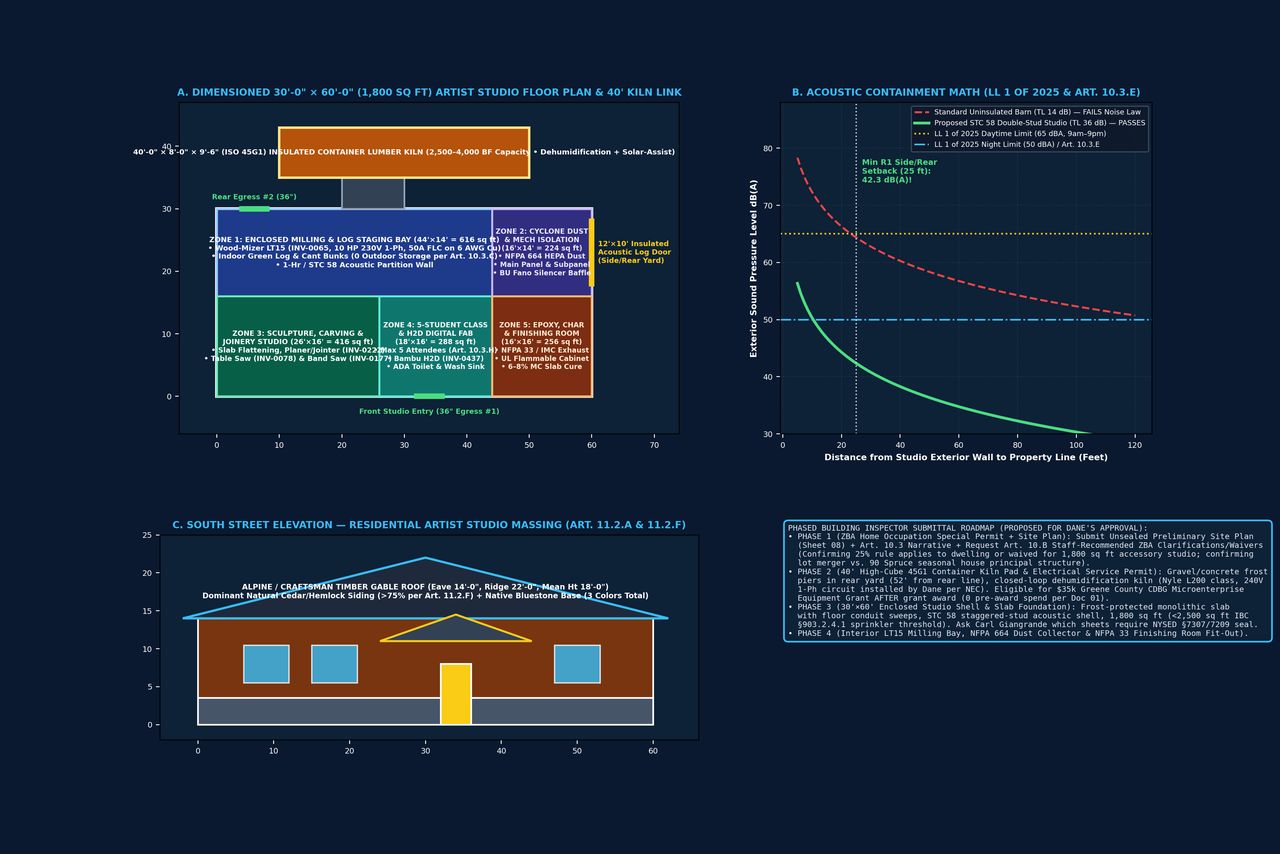

Sheet 09 Floor Plan and Elevations for 30x60 Studio and 15x30 Mezzanine — **Doc 09 Floor Plan & Elevations (R09):** 30×60 ft (1,800 sq ft) main floor + 15×30 ft (450 sq ft) structural mezzanine, high-bay roll-up doors, and timber-frame bents milled on the Wood-Mizer LT15.

Engineering Package / Code Ref	Verified Specification & Convergent Gate Receipt	Required Shop / Field Action
90 & 84 Spruce St Jurisdiction (Gate G1) SWIS 193603 · Tannersville	PROVEN [RECORD]: 90 Spruce St (182.09-1-3, Deed 2019/387) & 84 Spruce St (182.09-1-4, Deed 1342/303) are in the Village of Tannersville, NOT Town of Hunter jurisdiction (Village dissolution vote failed Jan 2025).	Apply Village of Tannersville Local Law #2 of 2010 (rev. LL #1 of 2011), R1 Bulk Table 1 (§ 3.7), and Noise Law LL #1 of 2025 exclusively. Pre-application review with Building Inspector Carl Giangrande.
Wood-Mizer LT15 Motor & Feeder (INV-0065) NEC Table 430.248 & 430.22	PROVEN [SPEC]: Lincoln 10 HP SINGLE-PHASE, 208–230V, 3500 RPM, Frame 215T (3-phase BP-104 withdrawn). NEC Table 430.248 FLC = 50 A; 430.22 conductors at 125% = 62.5 A minimum → 6 AWG Cu at 75 °C (65 A) or 4 AWG Al.	Size inverse-time breaker per NEC 430.52 (up to 250% FLC max, smallest that starts motor); provide lockable disconnect in sight (430.102). Never use the 20A L14-20 cords from P470–P529 for the 10 HP mill.
Wood-Mizer LT15 Bolt-On Upgrades (C1 / C2 / C5) 320 bd ft/hr · 30 in Cut	PROVEN [OEM CATALOG]: Factory Setworks/LubeMizer fit LT40/50/70 only. LT15 uses 158 × 1-1/4 × .042 in blade and 12V Power Feed.	Build in-house bolt-on C1 Magnetic-Tape Digital Height DRO on head mast + C2 Bracket Line Laser; optional LT15BS 6 ft 8 in bed extension ($1,195) for long studio rafters.
Shop Safety Protocols (SP-01 to SP-15) Mandatory Bench Rules	SP-01: Zero-energy verification before any contact. SP-02: Read nameplate before teardown. SP-05: Intact CRT disposal. SP-09: EPA Sec. 609 refrigerant recovery. SP-10: 14.2V gel stop, 2.0V Li cutoff, 7-in positive fuse.	Post laminated SP-01–SP-15 checklist at Zone 1 Electronics Bench and Zone 2 Timber Fabrication Table.
