Husqvarna 3120XP Field Portal

119cc professional chainsaw · inspection and service in progress

Chain brake inspection Carburetor tune-up Fuel mix 50:1 Walbro WG (WG10 / WG 7A EPA) Clutch: left-hand thread Cylinder 576 27 00-03 · Piston 501 89 41-03 60 local images

Idle targets: low ~2500 RPM · max 11,500–12,500 rpm (WM). Confirm with a tachometer and follow the operator/workshop documentation before adjustment.

🤖 AI Copilot

Working maintenance copilot backed by the field chat service.

📋 Logbook

Append field receipts, readings, parts, work, and evidence.

📕 Service

Manual sources and phased teardown runbooks.

🔩 Parts & orders

Track the carburetor, clutch, top end, and other service parts.

📷 Photos

56 IMG_*.jpg field images plus 6 photographed component references.

3120XP service data

Engine119 cm³ (WM), two-stroke
CarburettorWalbro WG · WG10 503 28 20-01 / WG 7A EPA 503 28 12-16
Speeds (WM)Idle 2,500 · engagement 3,300 · max 11,500–12,500 rpm
ClutchLeft-hand thread; turn clockwise to loosen
Top endIPL: cylinder 576 27 00-03, piston 501 89 41-03 · kit 506 29 42-71 unlocated in IPL

Open manuals and runbooks → · Open the current logbook →

Component gallery

Local component references from the 3120XP photo set. Open the full gallery for all 60 local images.

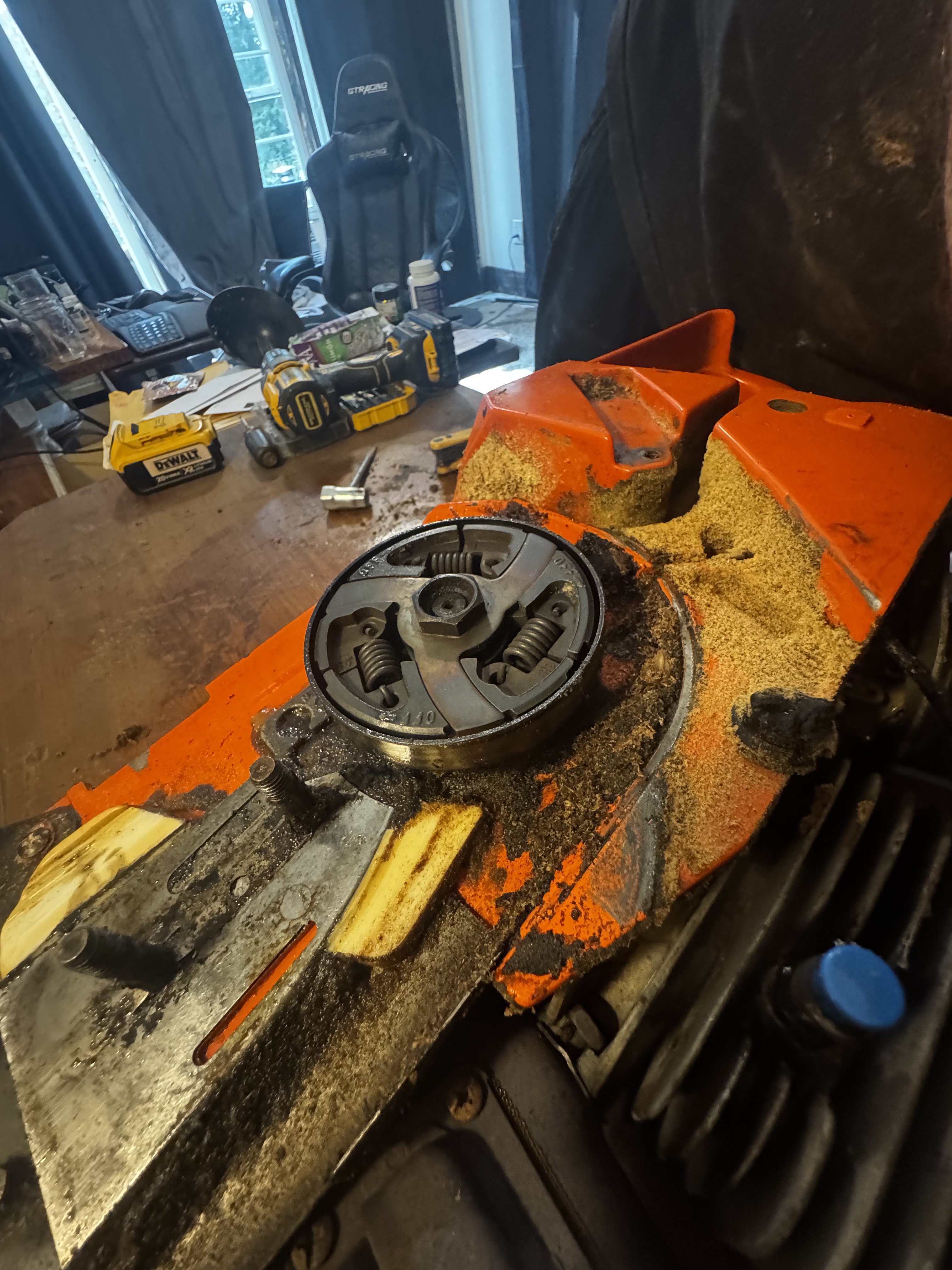

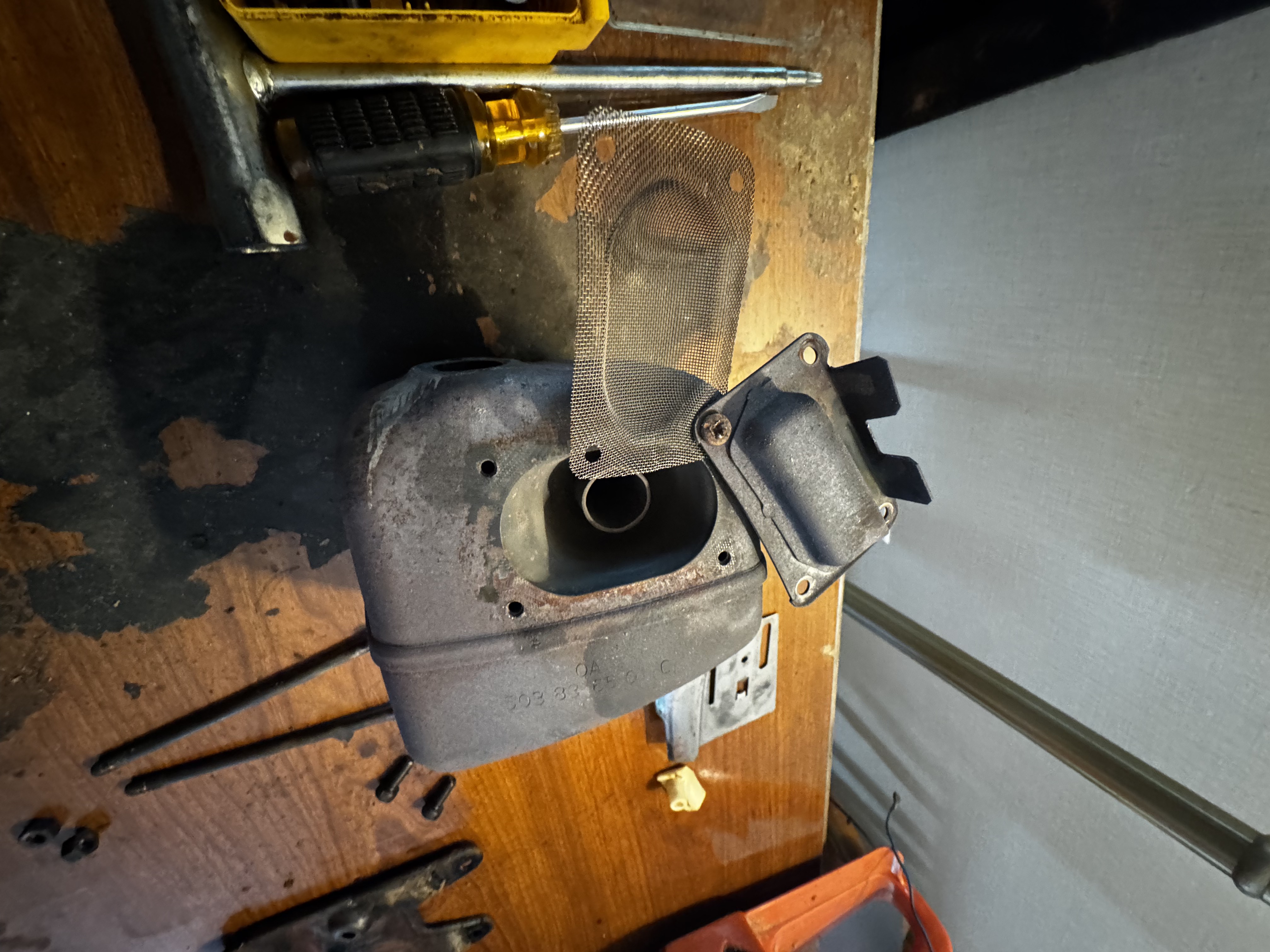

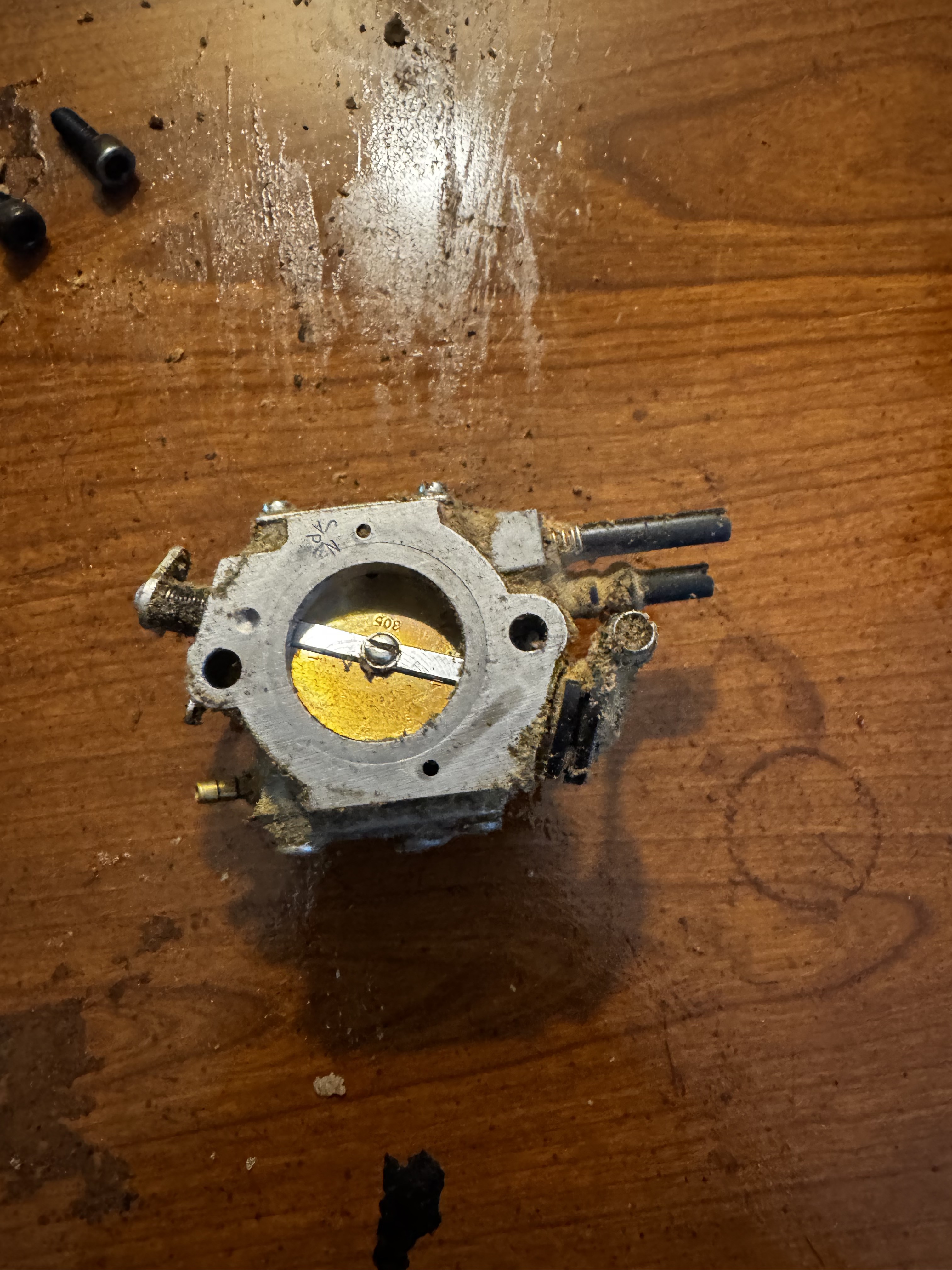

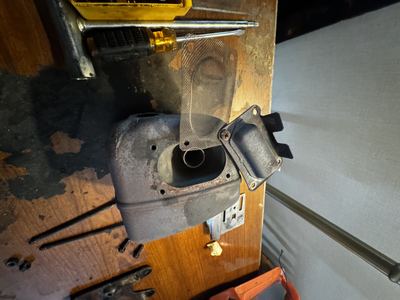

Husqvarna 3120XP carburetor Husqvarna 3120XP clutch Husqvarna 3120XP muffler
